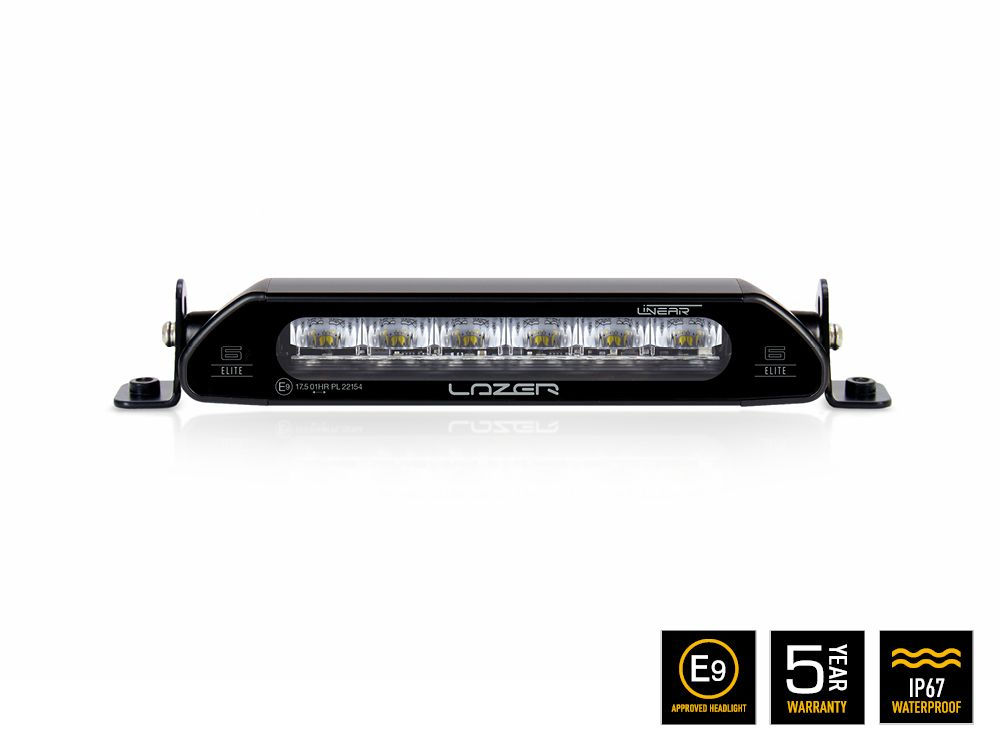

Linear-6 Elite Black
Representing the very best in slimline auxiliary high beam driving lights, the Linear range utilises a combination of highly efficient 3W LEDs and vacuum-metallised wide optics to deliver a perfectly tuned beam pattern for everyday road use. Measuring just 40mm in height, the Linear range is an excellent solution when either space is limited or when looking for a discreet installation that’s most likely to get noticed at night-time.

The Linear range is available in a variety of sizes from the 232mm (9”) Linear-6 to the 1282mm (51”) Linear-48. With the exception of the range topping Linear-48, all Linear products are fully UNECE certified to Regulation 112 as Class B Driving lights (for on-road use). Elite level products are also available across Linear-6/12/18 product lines with these products boasting twice the light output compared to the equivalent Standard version. The Linear-12 Elite and Linear-18 Elite lights are also available with the option for integrated position light function providing added safety and styling benefits.

Despite the diminutive proportions of the Linear products, the LED light bars are packed full of advanced and innovative features to maximise performance and longevity. With the products designed, engineered and built in-house, at our UK facility, you can be fully assured of exceptional high-end product design, coupled with superior levels of illumination, all backed by our comprehensive 5-year warranty.

Linear products are especially well-suited to roof mount installations where the sleek, aero design of the aluminium housing eliminates nearly all wind noise, and the comparatively low up/down spread of light ensures no glare off the vehicle bonnet.

What's included:
- x1 Linear-6 Elite LED Lamp
- x1 Anti-Theft Side Mount (1127k)
- x1 Installation Instructions

Linear-6 Elite Black

SKU: 0L06-EL-LNR
$437.50Price

  • Features

    Combination of highly efficient 3W ‘premium bin’ LEDs

    5000K LED colour temperature and 80CRI maximises sharpness and definition

    Vacuum-metallised optics deliver wide spread of light

    Reduced up/down spread of light suits even low mounting positions, or roof mounting

    Sleek, low profile design eases installation

    Aero design virtually eliminates wind noise on roof installations

    Flexible mounting options – anti-theft side mounting brackets included

    Electronic thermal management system optimises light output to preserve longevity of the LEDs

    Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection

    CAE optimised heatsink offers improved thermal dynamics

    Over voltage protected

    Reverse polarity protected

    ‘Unbreakable’ polycarbonate lens with hardcoat lacquer

    UNECE approved Reg 112 (Class B Driving Light) for on-road high beam function

    UNECE approved Reg 10

    IP67 watertight

    5 year warranty

    Supplied with pre-wired male/female 2-pin Superseal connectors

    Designed and manufactured in UK

  • Specifications

    Voltage Range (DC) 10-32V
    LED Life 50,000 hours
    Weight 495 gr
    HIGH BEAM FUNCTION
    Total Luminous Flux 4050 Lm
    Total Driver 'FOV' Flux † 2884 Lm
    Colour Temperature 5000K
    Number of High Output LEDs 12
    Power Consumption 42 Watts
    Current Draw (at 14.4V) 2.9 Amps
    Start-up Time * 100ms
    CERTIFICATION
    High Beam ECE R112
    ECE Reference 17.5
    DIMENSIONS
    Width 232 mm
    Depth 62 mm
    Height 40 mm
    PHOTOMETRIC DATA
    Horizontal Beam Angle 42 degrees
    0.25 lx Line 563 metres
    0.5 lx Line 398 metres
    1 lx Line 282 metres
    3 lx Line 163 metres

    * 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.

    † Driver FOV flux is a measure of effective lumens taking consideration of the amount of light in a driver's 'field-of-view' defined as an area +/- 45o left/right, and +/- 10o up/down. For more information – click here.
