The Sentinel range are 9” round lamps that combine distinctive high-end product design, with superior lighting performance and build quality symbolic of the Lazer Lamps name. The Sentinel Elite product comes available with a sleek black internal appearance, and a combination of 32 high power LEDs, representing the very best lighting performance as expected from a product bearing the ‘Elite’ tag. Lighting performance aside, meticulous product styling ensures this is a product that stands out for all the right reasons.
Emitting 15,232 raw lumens, the lamps deliver 1 lux to 742m, but it is in the 52 degree horizontal spread of light, and visibility at the sides of the road or track in the mid to long-range that the Sentinel Elite really comes into its own. For a demonstration of the lighting performance, please click the videos section below. Like all Lazer products, the colour temperature at a pleasant 5000K is easy on the eye, while maximising sharpness and definition of objects ahead.

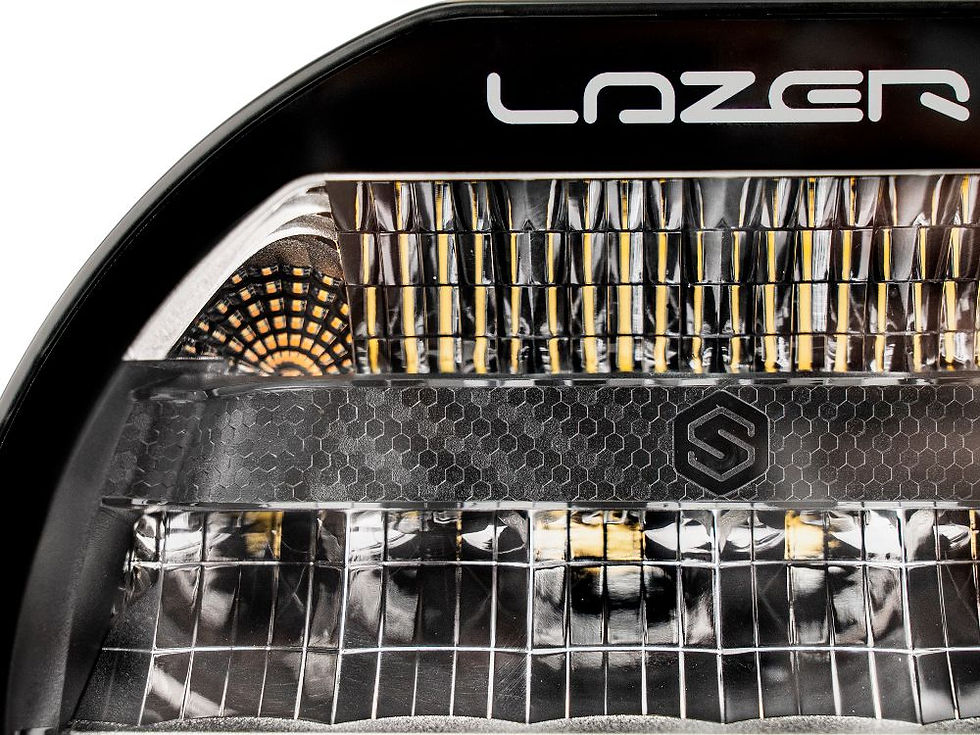

The stealth design of the black variant of the Sentinel lamp is achieved through the adoption of black printed circuit boards, and black bezel feature with intricate hexagonal design detail for a unique, contemporary appearance. The aesthetic appeal of the lamp is furthered through the diecast aluminium mounting bracket, with Sentinel stamp, which like the lamps themselves has an automotive-grade pre-treatment before being powder coated satin black. The result is a premium finish on the product that is fully protected against aesthetic deterioration or corrosion. An alternative ‘slim’ mounting bracket, along with a range of: lens covers, stay bar kit, and anti-theft fasteners, are available as optional accessories.
As with all Lazer products, the Sentinel lamps have been designed, engineered, and are manufactured in-house, in the UK. There is no compromise in regards component parts, or build processes to achieve a superior product, while simultaneously ensuring that more than ever, environmental stewardship and an ambitious carbon-reduction program have also featured heavily in the Sentinel products design and build.
What's included:
- x1 Sentinel Elite (Black) LED Lamp
- x1 'Wide' Mount Kit (1140k)
- x1 'Lazer' Black Lens Cover (LC-BLK-0S9)
- x1 Installation Instructions
Sentinel 9" Elite (Black)
Features
Combination of 32 premium ‘bin’ LEDs
Black PCB and bezel detail result in stealth black internal appearance
5000K LED colour temperature and 80CRI maximises sharpness and definition
Ultra-reflective vacuum-metallised spot and wide optics
Contemporary lamp design
Supplied with diecast aluminium mounting bracket featuring Sentinel stamp
Electronic thermal management system optimises light output to preserve longevity of the LEDs
Anodised pre-treatment and automotive grade powder top-coat for ultimate corrosion and chemical protection
CAE optimised heatsink offers improved thermal dynamics
Over voltage protected
Reverse polarity protected
‘Unbreakable’ polycarbonate lens with hardcoat lacquer
A2 stainless steel fasteners with automotive grade black coating
Supplied with Lazer branded black lens cover
UNECE approved Reg 10
IP68 watertight – 1.5m submersion (30mins)
5-year warranty
Supplied with pre-wired male/female 2-pin Superseal connectors
Designed & manufactured in UK
Specifications
Voltage Range (DC) 10-32V LED Life 50,000 hrs Weight 2.5 kg HIGH BEAM FUNCTION Total Luminous Flux 15232 Lm

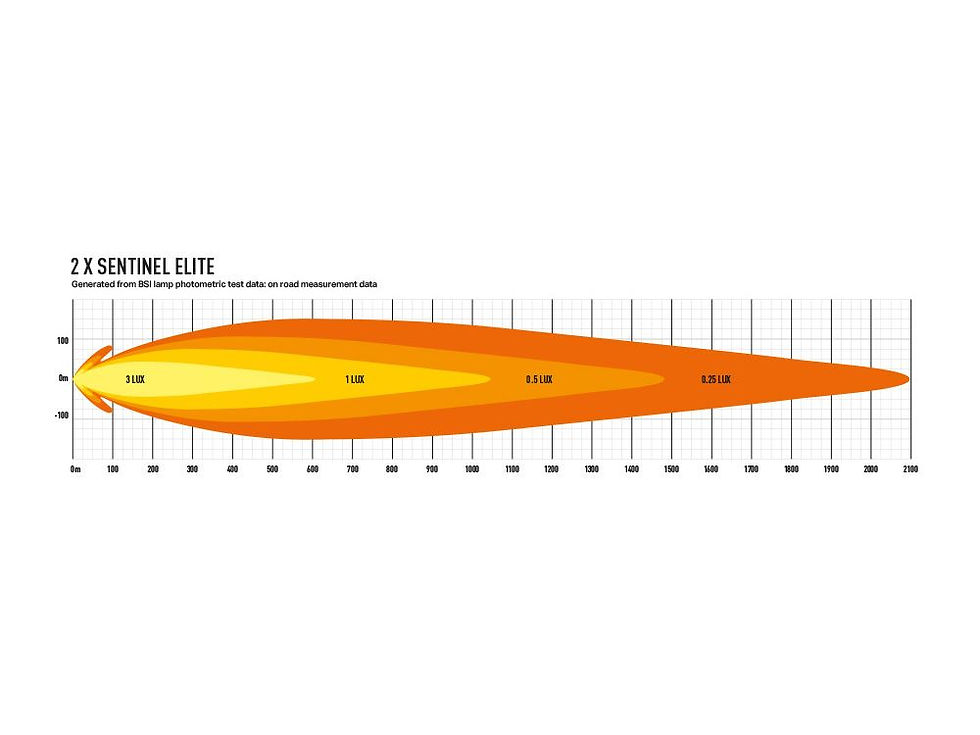

Colour Temperature 5000k Number of High Output LEDs 32 Power Consumption 145 Watts Peak Current Draw (10v) 14.7 Amps Current Draw (at 14.4V) 10.1 Amps Start-Up Time* 5ms PHOTOMETRIC DATA Horiz Beam Angle 52 Deg 0.25 lx Line 1483 metres 0.5 lx Line 1049 metres 1 lx Line 742 metres 3 lx Line 428 metres * 'Start-up time' is the delay between the lamp receiving voltage, and light being emitted. Different Lazer lamps have different start-up times, depending on their electrical architecture, so we recommend that if you are buying two different types of Lazer lamp, for mounting on to the same vehicle, that you ensure you pick products with matching start-up time (either 5ms or 100ms, depending on the product). Please check the lamps technical section on each product page to be sure you are purchasing lights with the same start-up time for the best performance.
